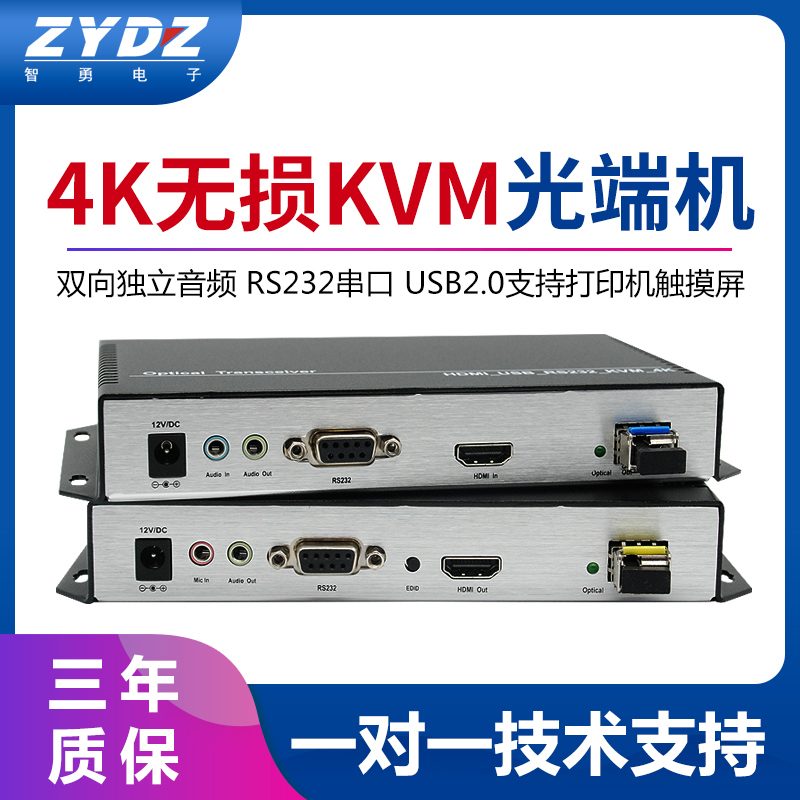

4K@30Hz HDMI KVM optical transceiver

Name: 4K@30Hz HDMI KVM optical transceiver
Brand: ORIVISION
SKU: ZY-OKH501
Availability: InStock

Model: ZY-OKH501

The 4K-KVM optical transceiver supports 4K resolution and consists of a transmitter, receiver, and fiber optic components. It is actually a device that uses a single fiber optic cable to extend keyboards, mice, speakers, microphones, HDMI signals, RS232, and more. It can use television to display computer signals. You can also place the keyboard, mouse, and microphone in front of the TV for operation. The decoder has four USB ports, which can be used for data USB drives, touch screens, printers, scanners, and even USB standard definition cameras. All signals will be controlled by the computer through the network and support HDCP1.4 version.

Model ZY-OKH501

TX Input HDMI * 1 USB * 1 RS232 * 1 3.5 Audio Input * 1 3.5 Audio Output * 1

TX Output LC optical port

RX Input LC optical port

RX Output HDMI * 1 RS232 * 1 3.5 audio output * 1 3.5 microphone input * 1 USB * 4

Max Resolution 3840* 2160@30HZ backward compatible

Transmission Distance 10KM

Cable Single mode 1-core

Request a Quote

Overview

Key advantage: Supports up to 3840 x 2160@30 High definition resolution

Specifications

Product Model	ZY-OKH501
Transmitter - Input Signal	HDMI * 1 USB * 1 RS232 * 1 3.5 Audio Input * 1 3.5 Audio Output * 1
Transmitter - Output Signal	LC optical port
Receiver - Input Signal	LC optical port
Receiver - Output Signal	HDMI * 1 RS232 * 1 3.5 audio output * 1 3.5 microphone input * 1 USB * 4
Maximum resolution	3840* 2160@30HZ backward compatible
Transmission distance	10KM
Cable requirements	Single mode 1-core
Size	18.7X10.5X2.8CM
Net weight	Single unit 0.3kg
Power supply	DC 12V, 1A

Key Features

Supports up to 3840 x 2160@30 High definition resolution

Supports bidirectional audio (forward audio, reverse microphone MIC)

Support real-time EDID feedback

Support RS232 transparent transmission (baud rate 115200)

High speed ASIC technology ensures near zero latency for remote imaging, keyboard, and mouse

Using single-mode single core LC fiber, standard configuration includes 10KM

Plug and play, no settings required

Remote USB supports USB external devices such as keyboard, mouse, USB flash drive, printer, scanner, etc

Applications

Rail Transit and Subway PIS

The signal transmission of the station hall and platform display screen is long-distance, resistant to electromagnetic interference, and ensures stable broadcasting of operational information.

Cross park security monitoring

Single mode fiber optic cables can travel up to 10 kilometers and are suitable for high-definition video transmission across buildings and parks.

KVM remote control extension

The keyboard and mouse signals are transmitted together with the 4K video to achieve remote centralized control of the computer room host.

Radio and television production

Lossless transmission of 4K baseband signals between studios, broadcasting vehicles, and production centers, without compression or delay.

FAQ

How far can the transmission distance reach?

According to the specifications, the transmission distance of this product is 10KM. The actual distance may be affected by wire quality, on-site interference, and joint technology. It is recommended to reserve a margin for engineering deployment.

What is the highest supported resolution?

The specification parameter is 3840* 2160@30HZ Downward compatibility. Please select the matching resolution and frame rate based on the actual signal source capability.

What are the power supply requirements?

The power supply specification is DC 12V, 1A. Please ensure that the on-site power supply meets the requirements, and if necessary, configure a voltage regulator or UPS.

What is the size of the equipment and how to install it?

The appearance specification is 18.7X10.5X2.8CM, and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.
