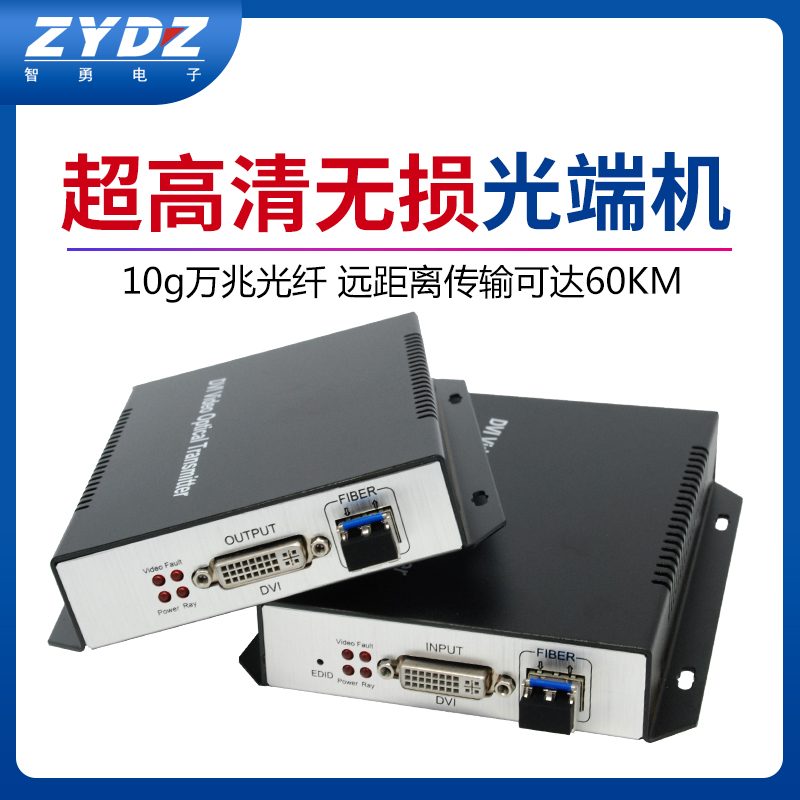

4K@30Hz DVI uncompressed optical transceiver

Name: 4K@30Hz DVI uncompressed optical transceiver
Brand: ORIVISION
SKU: ZY-DVI-H-T/R
Availability: InStock

Model: ZY-DVI-H-T/R

ZY-DVI-H-T/R is an ultra high-definition DVI optical transceiver that supports 4K resolution. It converts DVI signals into 10G differential signals through a patented conversion chip, and transmits and receives DVI high-definition multimedia signals through optical modules and optical fibers to achieve long-distance transmission of DVI high-definition multimedia signals. Through optical modules with different transmission distances, it can achieve long-distance transmission of up to 60KM. This product is a lossless and delay free transmission, suitable for various requirements of high-definition long-distance transmission. Supports DVI 1.0 high-definition signal transmission, can reverse transmit EDID, with resolutions of up to 720p/60Hz, 1080i/60Hz, 1080p/30Hz, 1080p/60Hz, 1080p/120Hz, etc. It is compatible with HDMI signal transmission, supports DVI interface hot plug and unplug, low energy consumption, long-distance, plug and play, strong compatibility, and can achieve more accurate display.

Model ZY-DVI-H-T/R

Max Resolution 3840×2160@30HZ

Transmission Distance Single mode: 10 kilometers (standard) 30 kilometers 60 kilometers Multi mode: 300m

Cable 1-core fiber optic or 2-core fiber optic

Dimensions 168mm (length) x 130mm (width) x 29mm (height)

Weight Sender: 0.3KG

receiving end 0.3KG

Request a Quote

Overview

Key advantage: 1) All digital, zero compression, zero latency 1122DVI

Specifications Summary

Product Model	ZY-DVI-H-T/R
Maximum resolution	3840×2160@30HZ
Transmission distance	Single mode: 10 kilometers (standard) 30 kilometers 60 kilometers Multi mode: 300m
Cable requirements	1-core fiber optic or 2-core fiber optic
Size	168mm (length) x 130mm (width) x 29mm (height)
Weight	Sender: 0.3KG
Receiving end	0.3KG
3) Highest resolution	3840× 2160@30HZ 4) Can reverse transmit EDID 5) Compatible with HDMI signal transmission 6) Supports DVI interface hot plug and play, plug and play, no need to set product model
Transmitting end	ZY-DVI-H-T
Single mode	10 kilometers (standard), 30 kilometers, 60 kilometers, multimode: 300m cable requires 1 core fiber or 2 core fiber. Operating temperature and humidity should be less than 90%, and there should be no condensing power supply. 12V/1A DC size: 168mm (length) x 130mm (width) x 29mm (height). Weight:

Applications

Rail Transit and Subway PIS

The signal transmission of the station hall and platform display screen is long-distance, resistant to electromagnetic interference, and ensures stable broadcasting of operational information.

Cross park security monitoring

Single mode fiber optic cables can travel up to 10 kilometers and are suitable for high-definition video transmission across buildings and parks.

Long distance high-definition extension

The 300 meter transmission distance covers large venues, factories, and campus backbone cabling.

Radio and television production

Lossless transmission of 4K baseband signals between studios, broadcasting vehicles, and production centers, without compression or delay.

FAQ

How far can the transmission distance reach?

According to the specification parameters, the transmission distance of this product is single-mode: 10 kilometers (standard) 30 kilometers 60 kilometers multimode: 300m. The actual distance may be affected by wire quality, on-site interference, and joint technology. It is recommended to reserve a margin for engineering deployment.

What is the highest supported resolution?

The specification parameters are 3840 × 2160@30HZ Please select the matching resolution and frame rate based on the actual signal source capability.

What is the size of the equipment and how to install it?

The appearance specifications are 168mm (length) x 130mm (width) x 29mm (height), and can be selected for desktop placement, wall mounting, or rack installation according to site conditions.

How to handle EDID?

Support EDID related functions. When encountering display abnormalities, you can try relearning EDID or manually specifying the resolution.

Technical Specifications

Full Parameter Table

Product Model	Sender: ZY-DVI-H-T Receiver: ZY-DVI-H-R
Sending end - Input signal	1 DVI, 1 RS232
Sending end - output signal	1 LC or 2 LC
Receiver - Input Signal	1 LC or 2 LC
Receiver - Output signal	1 DVI, 1 RS232
Maximum resolution	3840×2160@30HZ
Transmission rate	10Gbps
Transmission distance	Single mode: 10 kilometers (standard) 30 kilometers 60 kilometers Multi mode: 300m
Cable requirements	1-core fiber optic or 2-core fiber optic
Operating Temperature	-20°C to +60°C
Environmental Humidity	<90%, no condensation
Power supply	12V/1A DC
Size	168mm (length) x 130mm (width) x 29mm (height)
Weight	Sender: 0.3KG Receiver: 0.3KG
