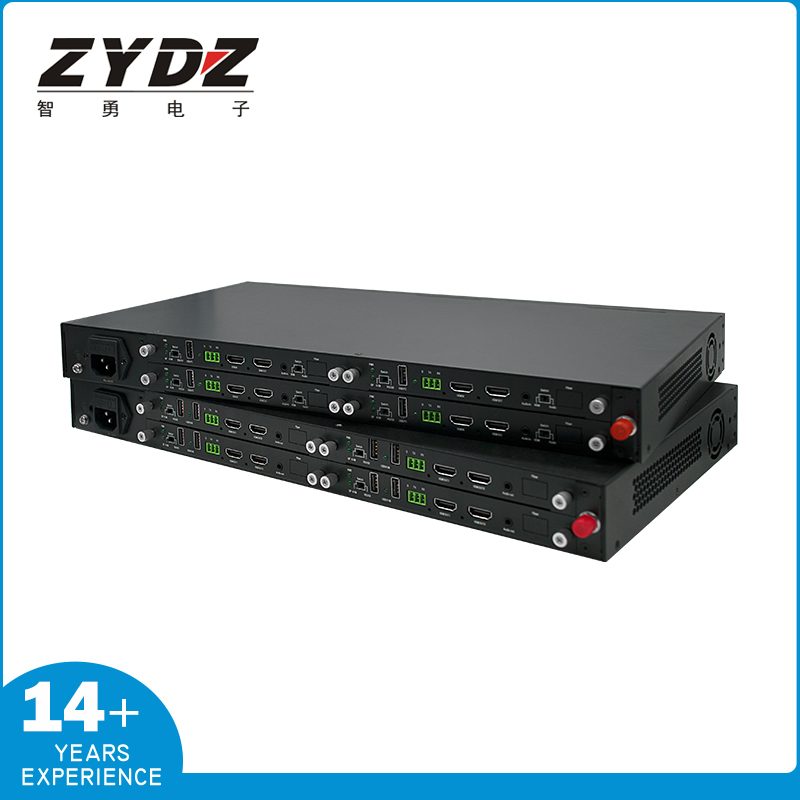

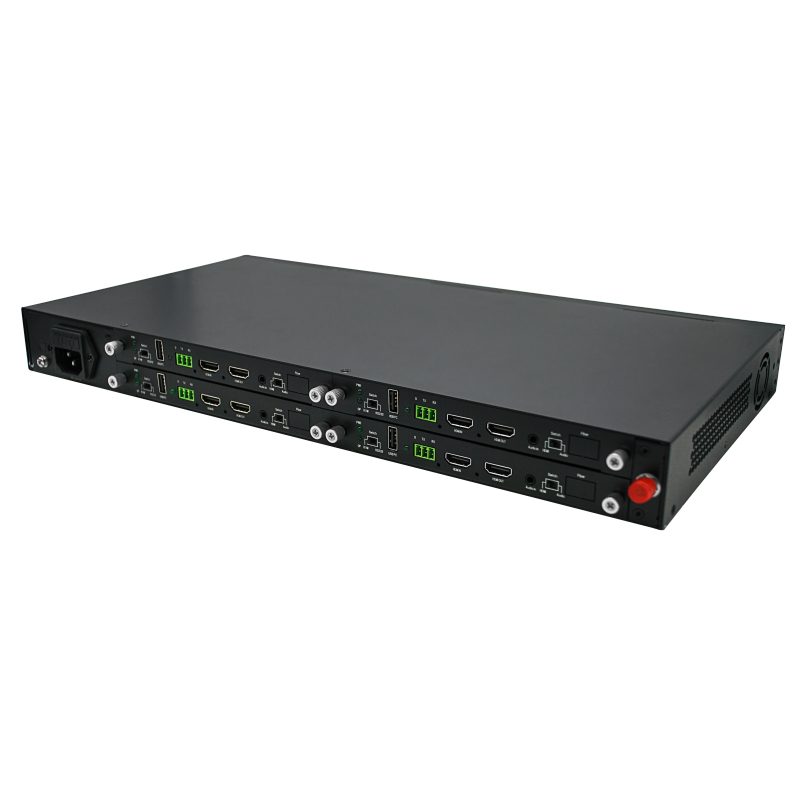

Multi channel HDMI optical transceiver

Name: Multi channel HDMI optical transceiver
Brand: ORIVISION
SKU: multi-channel-hdmi-fiber
Availability: InStock

Model: -

The HDMI optical transceiver transmits high-definition video signals over long distances through optical fibers, and supports functions such as serial data transmission and external independent audio, which can adapt to various complex application environments. This device supports HDMI 1.4 high-definition and 3D video signal transmission, HDCP, with resolutions of up to 720p/60Hz, 1080i/60Hz, 1080p/30Hz, 1080p/60Hz, etc. It also supports 7.1 channel PCM surround sound and compressed audio, with excellent image processing and transmission capabilities, making signal transmission smoother and more stable. It is a reliable, high-performance, and efficient HDMI signal extension method.

Model Multi channel HDMI optical transceiver

Max Resolution 1920×1080@60Hz

Transmission Distance Single mode: 10 kilometers (standard)

Cable Can transmit 2-4 channels with multiple single core channels

Supported Protocol HDMI1.4

Pixel Bandwidth 300MHz, All-Digital

Interface Bandwidth Total bandwidth 6.75Gbps

● Highest resolution 1920×1080@60Hz

Request a Quote

Overview

Key advantage: All digital, zero compression, zero latency, strong compatibility

Specifications Summary

Product Model	Multi channel HDMI optical transceiver
Maximum resolution	1920×1080@60Hz
Transmission distance	Single mode: 10 kilometers (standard)
Cable requirements	Can transmit 2-4 channels with multiple single core channels
Supported Protocols	HDMI1.4
Pixel bandwidth	300MHz, All-Digital
Interface bandwidth	Total bandwidth 6.75Gbps
● Highest resolution	1920×1080@60Hz
● Supports RGB4	4: 4 YUV4:4:4 YUV: 4:2:2 YUV4:2:0 ● Supports HDMI 1.4 and 3D ● Supports HDCP standard ● Supports 7.1 channel PCM surround sound and compressed audio ● Supports HDMI interface hot plug and play, plug and play, no need to set ● Supports four-way independent forward analog stereo audio signal transmission; ● Standard 1U British chassis ● Capable of transmitting 2-4 channels with multiple single cores
1 core	FC interface multi-core: LC interface fiber type single-mode 4-channel 1U rack front and back receiving end: 4-channel 1U rack front and back sending end: 끂끂끂끂 Plug and Play - Distributed Network Matrix Splicing System. pdf 끂 ORIVISION full product brochure. pdf 끂

Key Features

All digital, zero compression, zero latency, strong compatibility

Transmission bandwidth 10Gbps

Applications

Rail Transit and Subway PIS

The signal transmission of the station hall and platform display screen is long-distance, resistant to electromagnetic interference, and ensures stable broadcasting of operational information.

Cross park security monitoring

Single mode fiber optic cables can travel up to 10 kilometers and are suitable for high-definition video transmission across buildings and parks.

Long distance high-definition extension

The 10 meter transmission distance covers large venues, factories, and campus backbone cabling.

Radio and television production

1080P baseband signal lossless transmission between the studio, broadcasting vehicle, and production center, without compression or delay.

FAQ

How far can the transmission distance reach?

According to the specifications, the transmission distance of this product is single-mode: 10 kilometers (standard). The actual distance may be affected by wire quality, on-site interference, and joint technology. It is recommended to reserve a margin for engineering deployment.

What is the highest supported resolution?

The specification parameters are 1920 × 1080@60Hz Please select the matching resolution and frame rate based on the actual signal source capability.

What streaming media protocols are supported?

The supported protocols include HDMI 1.4. Can interface with mainstream platforms, NVRs, and streaming media servers.

Can it be mounted on the rack?

Adopting a rack structure design, it can be installed in standard 19 inch cabinets for centralized power supply and unified operation and maintenance.

Technical Specifications

Full Parameter Table

Product Model	Multi channel HDMI optical transceiver
Supported Protocols	HDMI1.4
Pixel bandwidth	300MHz, All-Digital
Interface bandwidth	Total bandwidth 6.75Gbps
Input/output voltage level	1VP-P
Support digital bit width	10Bit
Support resolution	Maximum 1920 × 1080@60Hz
Suggested maximum input/output distance for HDMI cables	Less than 10M, in 1920X1080@60Hz When using cables with equalization at the above resolution, it can reach up to 30M
Operating Temperature	0°~40°C/32°F~104°F
Environmental Humidity	20~90% RH (non condensing)
Power supply	100-220V AC
Fiber optic interface	1-core: FC interface Multi core: LC interface
Fiber Type	single mode
