DVI Ethernet cable network transmitter extender 1080P can pass through switches, 1-to-N can be cascaded
Model: ZY-DVI-BJ2

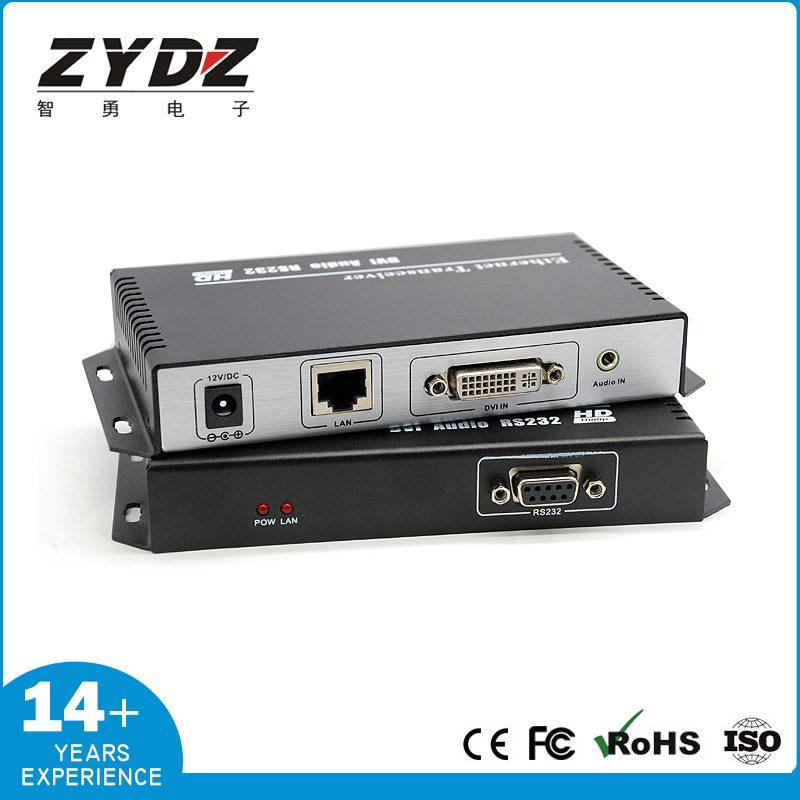

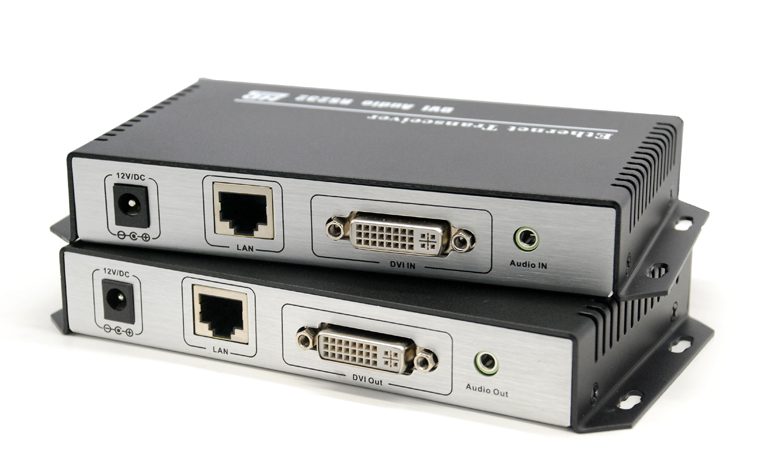

The DVI-B2/J2-RS232 network transmitter consists of a DVI encoder (DVI-B2-RS232) and a DVI decoder (DVI-J2-RS232), which transmit DVI, Audio, and RS232 signals through a local area network or Ethernet cable. In multimedia application systems, it is often necessary to transmit DVI digital video signals, audio and video signals, and RS232 control signals over long distances. But when using ordinary cables for long-distance transmission, there will always be poor output signals, which are easily affected by interference, and the displayed image will appear blurry, trailing, color separation, and other phenomena. The simultaneous transmission distance is short, and multiple cables are required to transmit these signals simultaneously, which cannot meet the requirements of long-distance transmission in multimedia information publishing, high-definition cameras, and other occasions. The use of DVI-B2/J2 network transmission completely solves such problems. At the same time, network transmission has advantages such as low attenuation, strong anti-interference performance, high security performance, small size, and light weight, so it has incomparable advantages in long-distance transmission and special environments.
Model
ZY-DVI-BJ2 DVI Ethernet Network Transmitter
Max Resolution
1920X1080@60HZ
Transmission DistancePoint to point 120 meters can pass through switches, and receivers can be connected in series
Cable
Category 5 and above
Dimensions
16.5cm*8.5cm*2.8cm
Net Weight0.21kg
