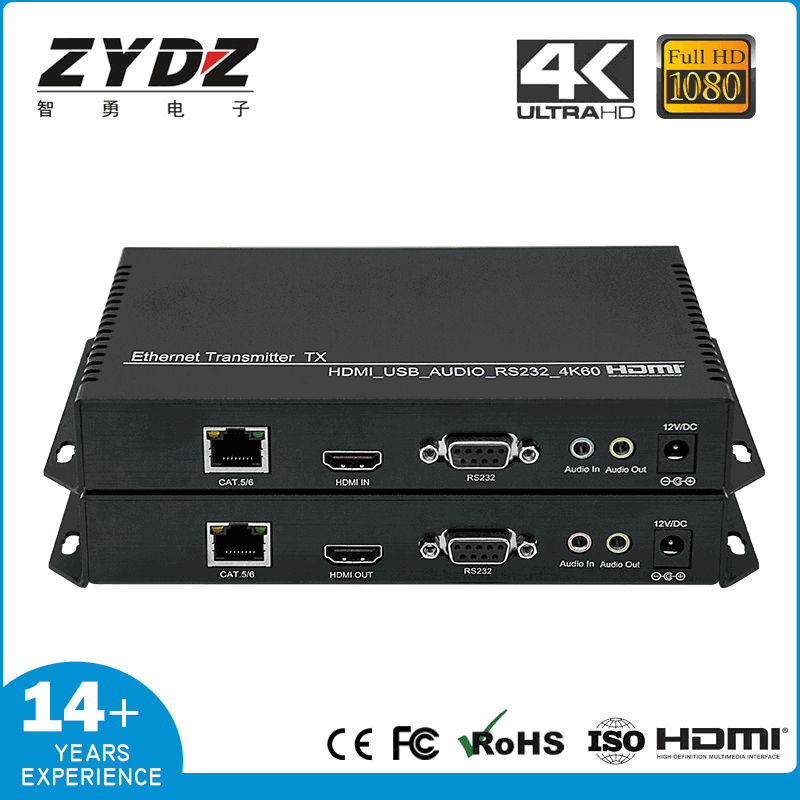

120m HDMI 4K60+USB2.0 KVM network cable transmitter ZY

120m HDMI 4K60+USB2.0 KVM network cable transmitter

Name: 120m HDMI 4K60+USB2.0 KVM network cable transmitter
Brand: ORIVISION
SKU: ZY-CKH901
Availability: InStock

Model: ZY-CKH901

4K HDMI-KVM transmitter, supports up to 4K@60Hz Resolution, composed of transmitter, receiver, and network cable (network) transmission.

Model ZY-CKH901

TX Input HDMI x 1 (supports HDCP2.2/2.3), USB 2.0 x 1, RS232 x 1, 3.5mm audio input x 1, 3.5mm audio output x 1

TX Output RJ45×1

RX Input RJ45×1

RX Output HDMI x 1 (supports HDCP2.2/2.3), RS232 x 1, 3.5mm audio output x 1, 3.5mm audio input x 1, USB 2.0 x 4

Max Resolution 3840* 2160@60HZ backward compatible

Transmission Distance Point to point 120 meters can pass through the switch

Cable More than 5 categories

Request a Quote

Overview

4K HDMI-KVM transmitter, supports up to 4K@60Hz Resolution, composed of transmitter, receiver, and network cable (network) transmission.

Using a single or gigabit network, video and audio signals from keyboards, mice, speakers, and HDMI interfaces can be transmitted to the TV screen for display. In addition, the keyboard and mouse can be placed in front of the TV for operation, and the receiving end has four USB interfaces that can be used for connecting and controlling devices such as data USB drives, touch screens, printers, scanners, and USB standard definition cameras. All signals will be controlled by the computer through the network and support HDMI 2.1 and HDCP 2.2/2.3 versions. The network supports both one-to-one and one to many transmission methods.

This product features a driver free design and plug and play functionality, making it suitable for use in any situation. Reliable and stable quality, suitable for applications in various industries.

Key advantage: Support Gundam 4K@60Hz (YUV420/422/444) Input/Output HDMI Video Stream

Specifications Summary

Product Model	ZY-CKH901
Sender - Input	HDMI x 1 (supports HDCP2.2/2.3), USB 2.0 x 1, RS232 x 1, 3.5mm audio input x 1, 3.5mm audio output x 1
Sender - Output	RJ45×1
Receiver - Input	RJ45×1
Receiver - Output	HDMI x 1 (supports HDCP2.2/2.3), RS232 x 1, 3.5mm audio output x 1, 3.5mm audio input x 1, USB 2.0 x 4
Maximum resolution	3840* 2160@60HZ backward compatible
Transmission distance	Point to point 120 meters can pass through the switch
Cable requirements	More than 5 categories
Size	18 × 10.5 × 2.8cm (length * width * height)

Key Features

5mm audio output x 1, 3.5mm audio input x 1, USB 2.0 x 4

Support Gundam 4K@60Hz (YUV420/422/444) Input/Output HDMI Video Stream

Supports bidirectional audio

Support EDID callback

Support RS232 transparent transmission (baud rate 115200)

High speed ASIC technology ensures near zero latency for remote imaging, keyboard, and mouse

Supports Cat5e Ethernet point-to-point transmission up to 120 meters and can pass through gigabit switches

Plug and play, no settings required

Remote USB supports USB external devices such as keyboard, mouse, USB flash drive, printer, scanner, etc

Applications

Centralized control of KVM machine room

Keyboard and mouse+4K video synchronous transmission, operation and maintenance personnel can operate the remote host from the duty station.

Conference room high-definition extension

The 120 meter Cat6 Ethernet cable connecting the camera to the display screen has a much lower wiring cost than dedicated cables.

Infrared and serial port feedback control

Support RS232 feedback, which can be remotely controlled to switch on and off the signal source device.

Multimedia Teaching System

Signal extension and distribution in multimedia classrooms and lecture halls, with clear and stable 4K images.

FAQ

How far can the transmission distance reach?

According to the specifications, the transmission distance of this product is 120 meters point-to-point and can pass through the switch. The actual distance may be affected by wire quality, on-site interference, and joint technology. It is recommended to reserve a margin for engineering deployment.

What is the highest supported resolution?

The specification parameter is 3840* 2160@60HZ Downward compatibility. Please select the matching resolution and frame rate based on the actual signal source capability.

What is the size of the equipment and how to install it?

The appearance specification is 18 × 10.5 × 2.8cm (length * width * height), and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.

Does it support KVM key mouse transmission?

This product supports the transmission of keyboard and mouse signals along with videos, enabling remote control of the keyboard and mouse on the host.

Technical Specifications

Full Parameter Table

Product Model			ZY-CKH901
Transmitter	input signal	Interface type	HDMI x 1 (supports HDCP2.2/2.3), USB 2.0 x 1, RS232 x 1, 3.5mm audio input x 1, 3.5mm audio output x 1
	output signal	Interface type	RJ45×1
Receiver	input signal	Interface type	RJ45×1
	output signal	Interface type	HDMI x 1 (supports HDCP2.2/2.3), RS232 x 1, 3.5mm audio output x 1, 3.5mm audio input x 1, USB 2.0 x 4
Maximum resolution			3840* 2160@60HZ backward compatible
Transmission distance			Point to point transmission up to 120 meters
Cable requirements			Cat5e Ethernet cable
Size			18 × 10.5 × 2.8cm (length * width * height)
Net weight			0.3KG per unit
Power supply			DC 12V/1A
Operating Temperature			-10°C to +55°C
Operating Humidity			, without condensation
Storage temperature			-20~85°
