4K high-definition HDMI KVM network extender

4K high-definition HDMI KVM network extender

Name: 4K high-definition HDMI KVM network extender
Brand: ORIVISION
SKU: ZY-CKH501
Availability: InStock

Model: ZY-CKH501

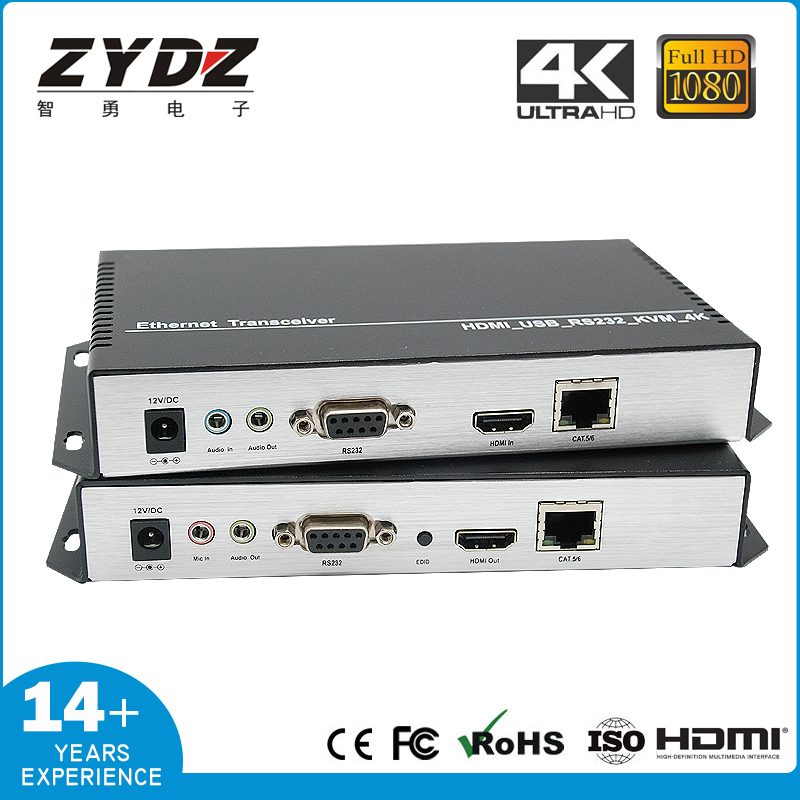

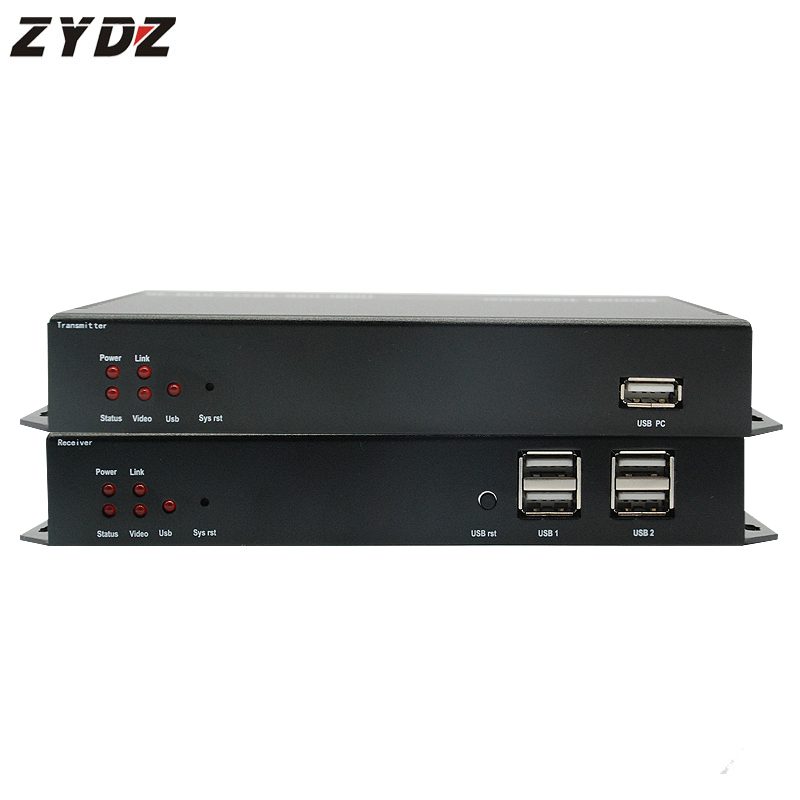

The transmitter only requires one Ethernet cable to easily transmit various resolutions of HDMI high-definition signals, USB keyboard and mouse signals, touch screens, scanners, and other USB devices output by computer hosts, high-definition video signal sources, high-definition DVD/DVR devices over long distances to the remote end,

Model ZY-CKH501

TX Input HDMI x 1 USB x 1 RS232 x 1 3.5 audio input x 1 3.5 audio output x 1

TX Output RJ45*1

RX Input RJ45*1

RX Output HDMI x 1 RS232 x 1 3.5 audio output x 1 3.5 microphone input x 1 USB x 4

Max Resolution 3840* 2160@30HZ backward compatible

Transmission Distance 120M

Cable CAT5/6

Request a Quote

Overview

The anti-interference ability is extremely strong, ensuring the integrity and stability of the signal. The 4K-KVM transmitter supports multiple transmissions through a gigabit switch.

Key advantage: Point to point transmitter 120 meters

Specifications Summary

Product Model	ZY-CKH501
Transmitter - Input Signal	HDMI x 1 USB x 1 RS232 x 1 3.5 audio input x 1 3.5 audio output x 1
Transmitter - Output Signal	RJ45*1
Receiver - Input Signal	RJ45*1
Receiver - Output Signal	HDMI x 1 RS232 x 1 3.5 audio output x 1 3.5 microphone input x 1 USB x 4
Maximum resolution	3840* 2160@30HZ backward compatible
Transmission distance	120M
Cable requirements	CAT5/6
Size	18.7X10.5X2.8CM
Net weight	Single unit 0.3kg
Power supply	DC 12V, 1A

Key Features

Point to point transmitter 120 meters

Support synchronous transmission of video, audio, keyboard, and mouse

Support Full HD, 3840 × 2160@30HZ

Supports gigabit switches to achieve 1 to many transmission

Bidirectional analog audio (microphone) mutual transmission

Compatible with HDMI 1.4 and HDCP 1.4 standards

Support EDID learning function

Supports RS232 bidirectional transparent transmission

Built in ESD protection circuit, which can effectively prevent static electricity loss

Applications

Centralized control of KVM machine room

Keyboard and mouse+4K video synchronous transmission, operation and maintenance personnel can operate the remote host from the duty station.

Conference room high-definition extension

The 120 meter Cat6 Ethernet cable connecting the camera to the display screen has a much lower wiring cost than dedicated cables.

Infrared and serial port feedback control

Support RS232 feedback, which can be remotely controlled to switch on and off the signal source device.

Multimedia Teaching System

Signal extension and distribution in multimedia classrooms and lecture halls, with clear and stable 4K images.

FAQ

How far can the transmission distance reach?

According to the specifications, the transmission distance of this product is 120M. The actual distance may be affected by wire quality, on-site interference, and joint technology. It is recommended to reserve a margin for engineering deployment.

What is the highest supported resolution?

The specification parameter is 3840* 2160@30HZ Downward compatibility. Please select the matching resolution and frame rate based on the actual signal source capability.

What are the power supply requirements?

The power supply specification is DC 12V, 1A. Please ensure that the on-site power supply meets the requirements, and if necessary, configure a voltage regulator or UPS.

What is the size of the equipment and how to install it?

The appearance specification is 18.7X10.5X2.8CM, and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.

Technical Specifications

Full Parameter Table

Product Model			ZY-OKH501
Transmitter	input signal	Interface type	HDMI x 1 USB x 1 RS232 x 1 3.5 audio input x 1 3.5 audio output x 1
	output signal	Interface type	RJ45*1
Receiver	input signal	Interface type	RJ45*1
	output signal	Interface type	HDMI x 1 RS232 x 1 3.5 audio output x 1 3.5 microphone input x 1 USB x 4
Maximum resolution			3840* 2160@30HZ backward compatible
Transmission distance			120m
Cable requirements			CAT5/6
Size	Length x Width x Height		18.7X10.5X2.8CM
Net weight			0.3kg
Power supply			DC 12V, 1A
Working temperature/humidity			-5~60°/
Storage temperature			-20~85°
