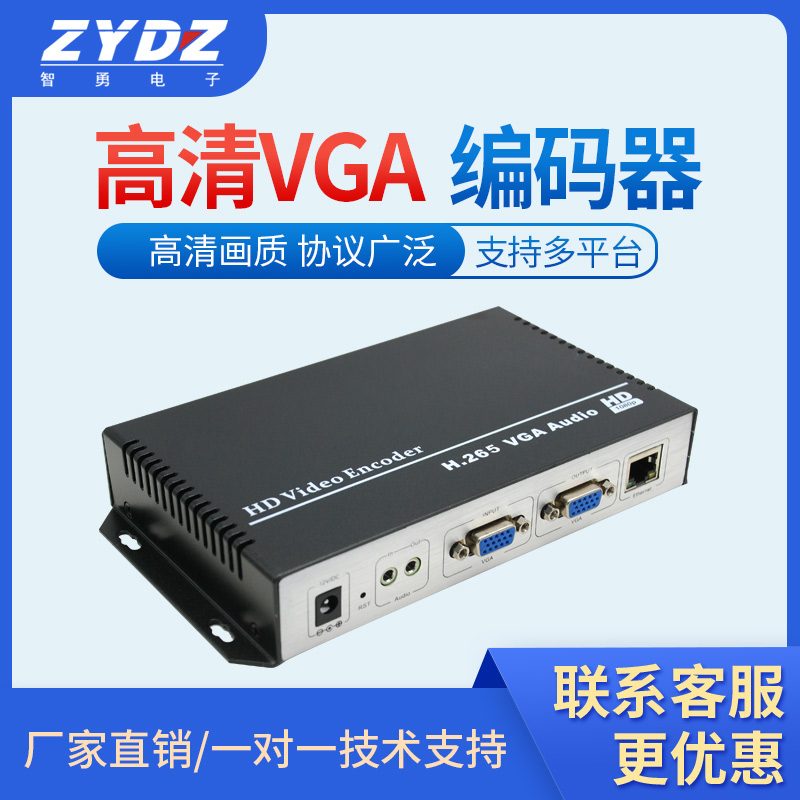

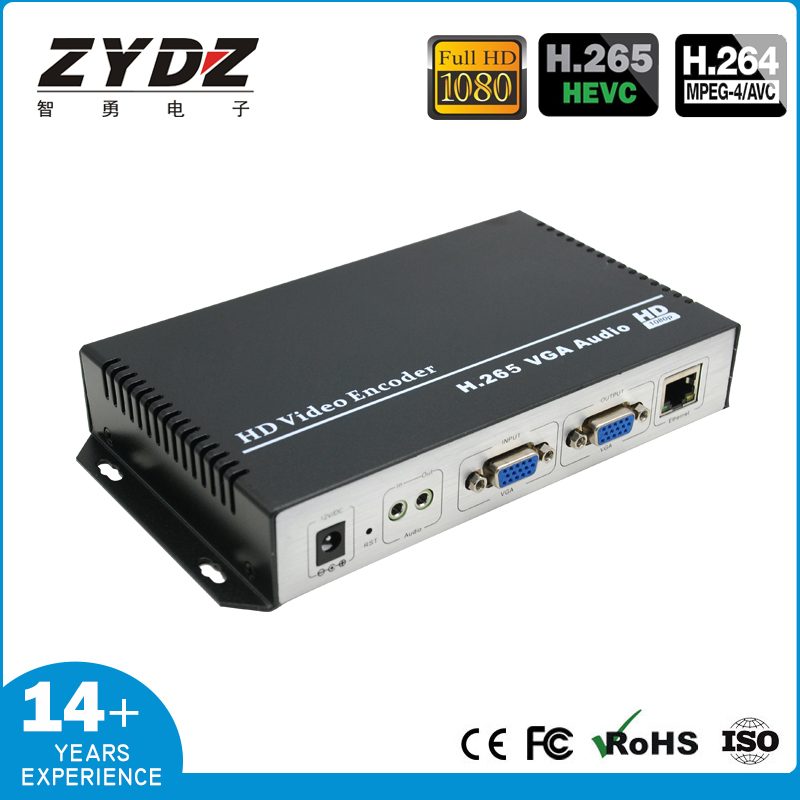

H.265 VGA high-definition encoder

Name: H.265 VGA high-definition encoder
Brand: ORIVISION
SKU: ZY-EV301
Availability: InStock

Model: ZY-EV301

VGA high-definition encoder (acquisition box) is a professional high-definition audio and video encoding product that only requires a small bandwidth to obtain high-definition video signals. This product adopts H.265/H.264 dual encoding format, which can encode both video and audio simultaneously. The TS dual stream output design allows for the setting of the output stream resolution for each channel according to different needs. This device has the advantages of high integration and low cost, and can be widely used in various digital TV broadcasting systems. Support 3U structure, one chassis can insert 16 acquisition cards, dual power redundancy structure, more stable system. Perfectly supports VLC decoding.

Model ZY-EV301

Encoding Format H.265, H.264

Audio Encoding AAC/G711

Video Resolution Output resolution up to 1080P 30HZ

Input Interface VGA, Audio

Output Interface VGA, Audio, Ethernet port

Subtitle overlay Chinese, English, and images

Network Protocols Supports HTTP, RTSP, RTMP, RTMPS, UDP, multicast, unicast FLV, HLS

Request a Quote

Overview

Key advantage: Supports one VGA and one audio input

Specifications Summary

Product Model	ZY-EV301
Encoding format	H.265, H.264
Audio Encoding	AAC/G711
Video resolution	Output resolution up to 1080P 30HZ
Input interface	VGA, Audio
Output interface	VGA, Audio, Ethernet port
Subtitle overlay	Chinese, English, and images
Network protocol	Supports HTTP, RTSP, RTMP, RTMPS, UDP, multicast, unicast FLV, HLS
Stream control	CBR/VBR rate control, 16kbit/s~16Mbit/s network interface adopts 100M full duplex mode, supporting HTTP, RTSP, RTMP, RTP, UDP multicast, UDP unicast, FLV, HLS and other protocols (RTMP supports username and password input function)

Key Features

Supports one VGA and one audio input

Supports one VGA and one local audio loop output

Supports resolutions up to 1920x1080@30Hz

Fully supports ONVIF protocol and can support NVR recording and playback

Supports H.265 efficient video encoding

Supports H.264 BP/MP/HP

Audio encoding supports MP3/AAC/G711

Audio supports left and right channels, and supports volume adjustment

Applications

Multi platform online live streaming promotion

Through RTMP, RTSP, HLS protocols, it is directly pushed to B station, Tiktok, YouTube and other platforms, and 1080P input is suitable for live broadcast of activities and e-commerce.

Security monitoring platform access

Support ONVIF integration with mainstream NVR and security management platforms, suitable for cloud based monitoring of parks and buildings.

IPTV and Digital Television Broadcasting

Output TS/UDP multicast streams, compatible with hotel IPTV, digital signage, and streaming media servers.

Multi position guide switching

One signal is encoded simultaneously and combined with vMix/OBS to achieve multi machine switching and broadcasting.

FAQ

What is the highest supported resolution?

The specification parameter is an output resolution of up to 1080P 30HZ. Please select the matching resolution and frame rate based on the actual signal source capability.

What streaming media protocols are supported?

The supported protocols include HTTP, RTSP, RTMP, RTMPS, UDP, multicast, unicast, etc., FLV, HLS. Can interface with mainstream platforms, NVRs, and streaming media servers.

Does it support audio transmission?

The audio specification is AAC/G711, which can be transmitted synchronously with video.

Technical Specifications

Full Parameter Table

Product Model		ZY-EV301 VGA HD Encoder (Acquisition Box)
Video and audio input	video input	1 VGA video interface
	Input resolution	1080P\1080i\720P, 1600x1200\1400x1050\1440x900\ 1280x1024\1280x960\1280x800\1024x768\ 800x600 720 576 resolution and other conventional resolutions
	audio input	1-channel 3.5 analog audio
Video and audio encoding parameters	video encoding	H.265/H.264
	Size after encoding	1920 * 1080/1280 * 720/1024 * 576/960 * 540/850 * 480/720 * 576/720 * 540/720 * 480/720 * 404/704 * 576/640 * 480/640 * 360/default input resolution
	Video Bitrate	CBR/VBR Rate Control 16Kbps-12Mbps Adjustable
	Video frame rate	Maximum 1080P 30Hz
	Subtitle overlay	Chinese, English, and images
	Audio Encoding	AAC/G711 optional
	Audio bitrate	64Kb/s~384Kb/s
	sampling rate	32000, 44100, 48000, etc
Network parameters	network interface	1, RJ45 1000M adaptive Ethernet port
	network protocol	Support SRT, HTTP, RTSP, RTMP, RTMPS, UDP, multicast, unicast FLV, HLS
	Stream code type	TS stream, ES stream
	interface protocol	ONVIF
	Configuration Management	WEB configuration, remote upgrade
General	Power supply	12V/DC 1A
	power consumption	<5W
	Operating Temperature	-20°C to +60°C
	Operating Humidity	<90%, no condensation
	Size (length X width X height)	19 (17.1) cm×16cm×3.2cm
	weight	0.3kg
