Name: 1U card rack mounted encoder with 1-4 HDMI unified power distribution and strong heat dissipation
Brand: ORIVISION
SKU: ZY-EHP1414
Availability: InStock

Model: ZY-EHP1414

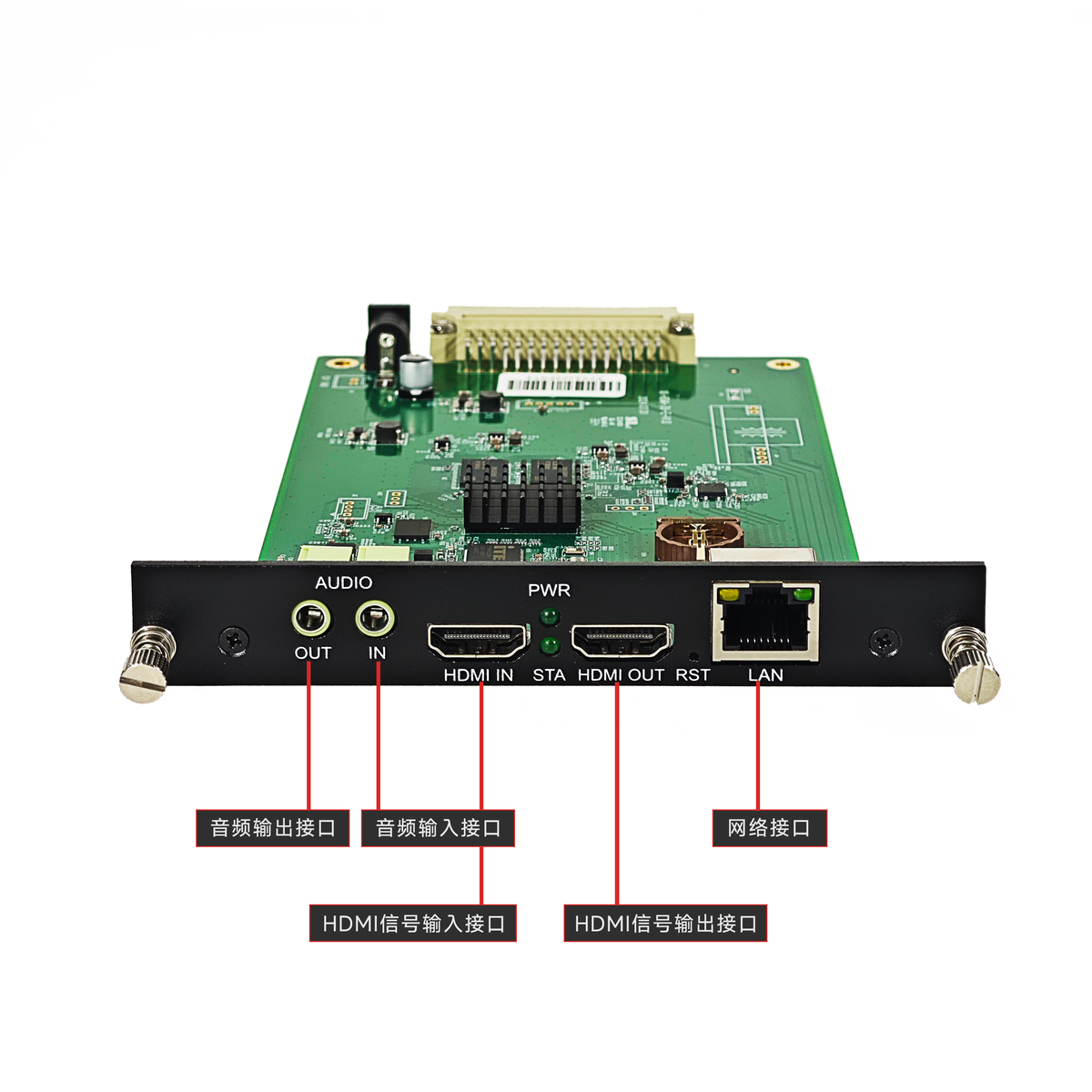

Rack mounted encoder can accommodate up to 4 HDMI encoding modules within a 1U rack mounted framework. Encode output in H.265/H.264/MJPEG format, audio encoding supports MP2/AAC/G711/AC3/EAAC/EAACPLUS. The encoding rate, frame rate, and output resolution are adjustable, and support protocols such as HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, GB28181, RTP, UDP multicast, UDP unicast, FLV, HLS, etc.

Model ZY-EHP1414

Video Input 4*HDMI

Video Loop-out 4*HDMI

Resolution Up to 3840 x 2160@30HZ, 1920× 1080P@60HZ

Screen Display IP, Input resolution, etc

Encoding Protocol H265/H264/MJPEG encoding

Frame Rate Video frame rate 4K ≤ 30 frames per second 1080 ≤ 60 frames per second

Audio Encoding MP2/AAC/G711/AC3/EAAC/EAACPLUS optional

Request a Quote

Overview

Remote video transmission/live streaming through the internet. The equipment comes with a standard power module for unified power supply, centralized heat dissipation, and can operate stably for a long time. Widely used in various situations where high-definition video signals and high-resolution high frame rates need to be collected and transmitted based on IP networks, the powerful scalability makes it easier to meet different industries and needs.

Key advantage: Using standard H265/H264/MJPEG encoding

Specifications Summary

Product Model	ZY-EHP1414
Video input	4*HDMI
Video loop out	4*HDMI
Resolution	Up to 3840 x 2160@30HZ, 1920× 1080P@60HZ
Screen Display	IP, Input resolution, etc
Encoding Protocol	H265/H264/MJPEG encoding
Video frame rate	Video frame rate 4K ≤ 30 frames per second 1080 ≤ 60 frames per second
Audio Encoding	MP2/AAC/G711/AC3/EAAC/EAACPLUS optional
Network protocol	Supports HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, GB28181, RTP, UDP, multicast, unicast FLV, HLS
Product Dimensions	48.5×20×4.5CM
Product weight	1.5KG
Stream control	CBR/VBR rate control, 16kbit/s~16Mbit/s network interface adopts 1000M full duplex mode, supporting HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, GB28181, RTP, UDP multicast, UDP unicast, FLV, HLS and other protocols (RTMP supports username and password input function)

Key Features

Using standard H265/H264/MJPEG encoding

Support screen display IP, input resolution, etc

Supports up to 3840 x 2160@30HZ, 1920× 1080P@60HZ

Support web online preview

Support IPv6

Support custom resolution output, screen scaling, and rotation

Supports HDMI digital audio and video output, as well as 1 analog audio output

Support HDMI audio decoding and ring out

No need to connect video, audio can also be encoded separately

Support output stream encryption

Applications

Rack mounted centralized coding

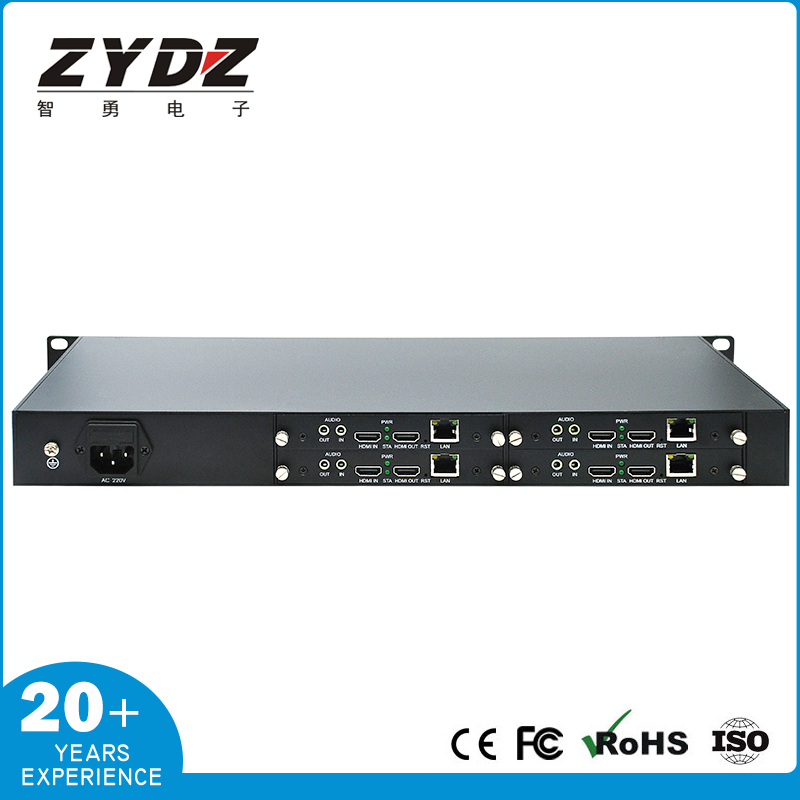

1U rack centralized installation, unified power supply and heat dissipation, suitable for batch deployment in TV stations and monitoring center rooms.

Multi platform online live streaming promotion

Through RTMP, SRT, RTSP, HLS protocols, it is directly pushed to stations B, Tiktok, YouTube and other platforms, and 4K input is suitable for live events and e-commerce.

Security monitoring platform access

Supports ONVIF/GB28181 integration with mainstream NVRs and security management platforms, suitable for cloud based monitoring of parks and buildings.

IPTV and Digital Television Broadcasting

Output TS/UDP multicast streams, compatible with hotel IPTV, digital signage, and streaming media servers.

FAQ

What is the highest supported resolution?

The maximum specification parameter is 3840 × 2160@30HZ, 1920× 1080P@60HZ Please select the matching resolution and frame rate based on the actual signal source capability.

What streaming media protocols are supported?

The supported protocols include HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, GB28181, RTP, UDP, multicast, unicast, etc., FLV, HLS. Can interface with mainstream platforms, NVRs, and streaming media servers.

Does it support audio transmission?

The audio specifications are available in MP2/AAC/G711/AC3/EAAC/EAACPLUS, which can be synchronized with video transmission.

What is the size of the equipment and how to install it?

The appearance specification is 48.5 × 20 × 4.5CM, and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.

Technical Specifications

Full Parameter Table

Video and audio input/output	Video input	4*HDMI
	Video loop out	4*HDMI
	Input resolution	3840× 2160@30HZ \2650 × 2048 \ 2650 × 2048 \ 2560 × 1920 \ 2560 × 1600 \ 2560 × 1400 \ 2048 × 1536 \ 2048 × 1152 \ 2048 × 1080 \ 1920 × 1400 \ 1920 × 1200 \ 1920 × 1080 \ 1600x1200 \ 1400x1050 \ 1440x900 \ 1280x1024 \ 1280x960 \ 1280x800 \ 1024x768 \ 800x600 \ 720 × 576, 1080P \ 1080i \ 720P and other conventional resolutions
	audio input	4-channel HDMI built-in audio, 4-channel 3.5 analog audio
	Audio loop out	4-channel 3.5 analog audio
Video and audio encoding parameters	video encoding	H.265 Baseline Profile Encoding H.264 Baseline Profile Encoding H.264 Main Profile Encoding H.264 High Profile Encoding MJPEG
	Size after encoding	3840× 2160@30HZ \2650 × 2048 \ 2650 × 2048 \ 2560 × 1920 \ 2560 × 1600 \ 2560 × 1400 \ 2048 × 1536 \ 2048 × 1152 \ 2048 × 1080 \ 1920 × 1400 \ 1920 × 1200 \ 1920 * 1080 \ 1280 * 720 \ 1024 * 576 * 960 * 540 \ 850 * 480 \ 720 * 576 * 540 \ 720 * 480/720 * 404/704 * 576/640 * 480/640 * 360/default input resolution
	Video Bitrate	CBR/VBR Rate Control 16Kbps-16Mbps Adjustable
	HDCP	1.4
	Video frame rate	Video frame rate 4K ≤ 30 frames per second 1080 ≤ 60 frames per second
	Subtitle overlay	Chinese, English, and images
	Audio Encoding	MP2/AAC/G711/AC3/EAAC/EAACPLUS optional
	Audio bitrate	64Kb/s~384Kb/s
	sampling rate	32000, 44100, 48000, etc
Network parameters	network interface	1, RJ45 1000M adaptive Ethernet port
	network protocol	Supports HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, GB28181, RTP, UDP, multicast, unicast FLV, HLS
	Stream code type	TS standard stream, 4 streams per channel
	Configuration Management	WEB configuration, remote upgrade
Universal chassis	Power supply	AC/DC 110-240V
	power consumption	(1PCS ≤6W
	Operating Temperature	-20°C to +60°C
	Operating Humidity	<90%, no condensation
	Size (length X width X height)	48.5×20×4.5CM
	weight	1.5KG
