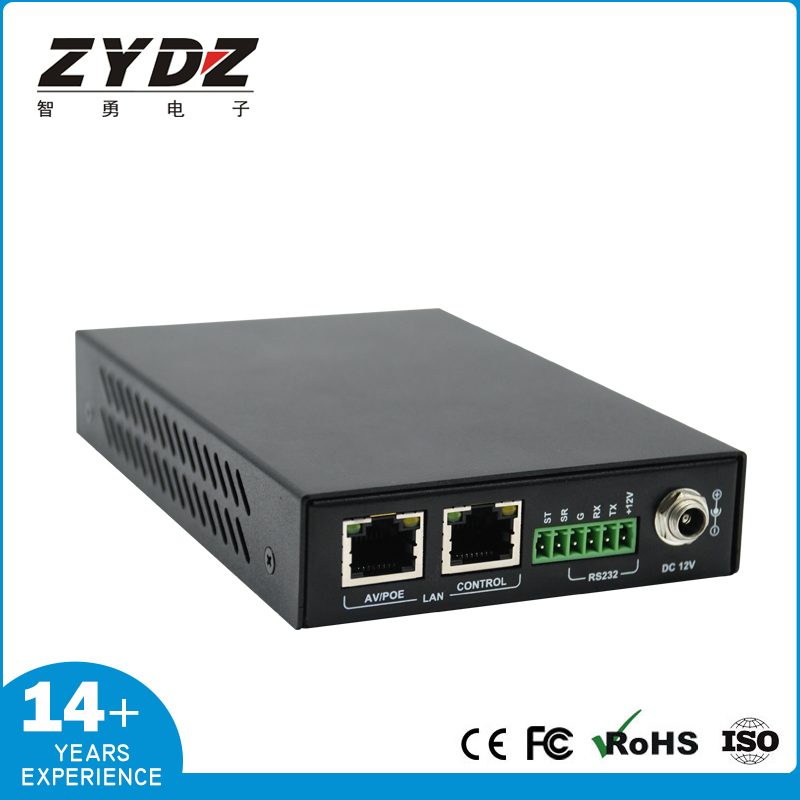

IP central control box

Name: IP central control box
Brand: ORIVISION
SKU: SC009
Availability: InStock

Overview

SC009 is an IP central control box equipped with Ethernet and RS232 ports, which can be managed and controlled through Web UI, Telnet, and third-party control devices. It can automatically search and display codecs in the system, and work with a PC console to control and configure devices, such as matrix system switching, splicing wall settings, etc. Suitable for application scenarios such as conference rooms, large shopping centers, hotels, monitoring centers, schools, or corporate training.

Key advantage: Control and manage through web UI, Telnet, and third-party control devices

Key Features

Control and manage through web UI, Telnet, and third-party control devices

Configure network and serial ports

Automatic detection and recognition of codecs

Support matrix switching

Equipped with dual network ports, one for media networks and one for network control

Can control the switching and splicing of codecs

Support one click switching between preset scenarios

Input/output interface

1 x LAN1 (AV/POE) (10/100 Mbps)

Applications

Command and Control Center

Large scale signal source distributed access, arbitrary scheduling on the wall, visual unified control.

Exhibition Display and Splicing Wall

Splicing walls, roaming windows, and cross screen displays are suitable for exhibition halls and command halls.

Corporate Meetings and Collaboration

Multi conference room signal interconnection, KVM seat collaboration, and permission level management.

Security Monitoring Center

Multiple camera access, IP matrix switching, and multi screen rotation display.

FAQ

Does it support PoE power supply?

The specifications indicate support for PoE power supply (optional configuration), and a single Ethernet cable can simultaneously complete power supply and signal transmission, making it suitable for points with difficulty accessing power. Whether it is standard or not, please refer to the actual shipping configuration.

Does it support custom development?

Support OEM/ODM customization and provide API protocol documentation for secondary integration development. If you have any project requirements, please contact us for confirmation.

Technical Specifications

[Parameter specifications]

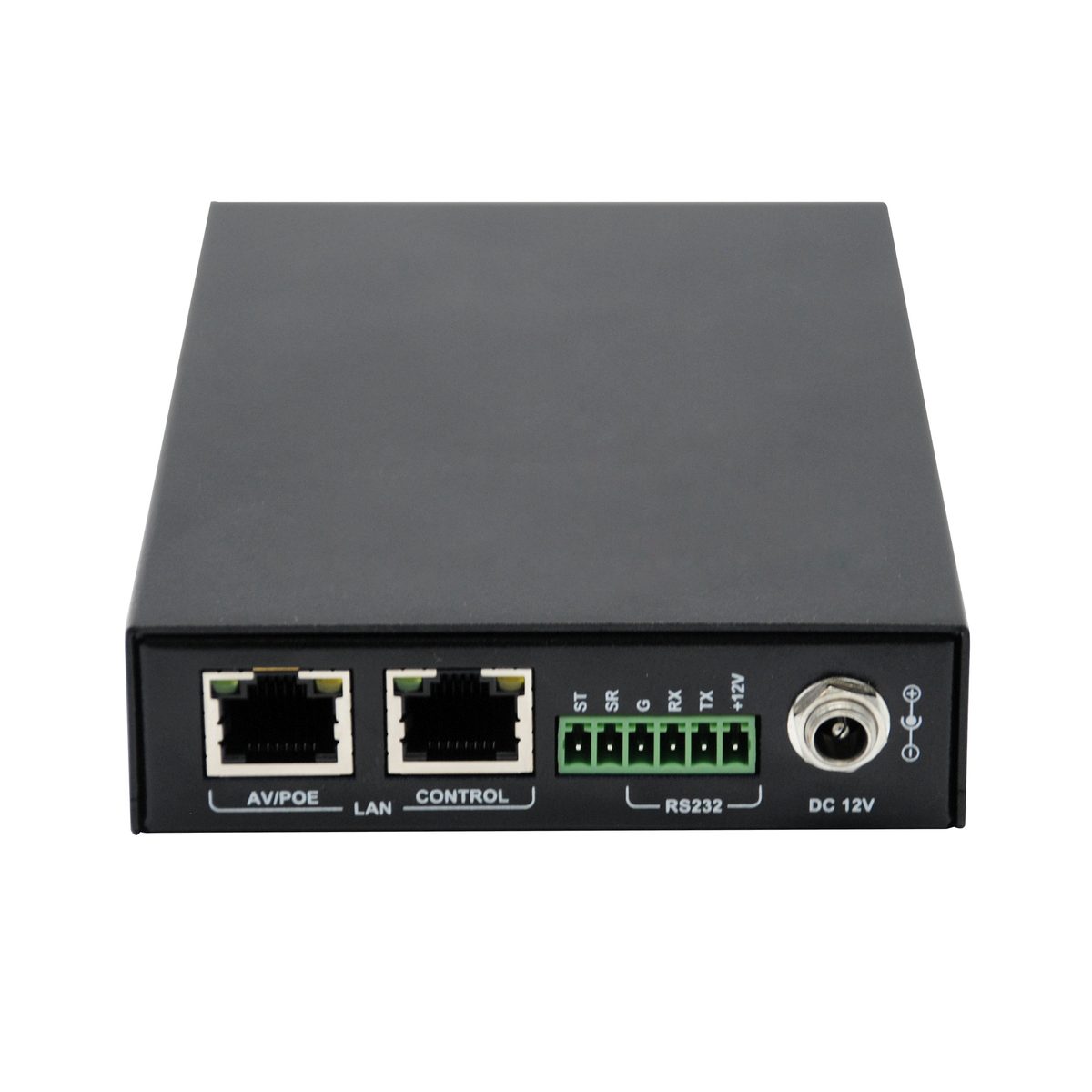

Input/output interface	1 x LAN1 (AV/POE) (10/100 Mbps) 1 x LAN2 (C) (10/100 Mbps) 2 x RS232
Indicator light	1 x STATUS LED 1 x POWER LED
Button	1 x RESET button
Control method	LAN (Web GUI & Telnet), RS232, Third party control equipment

[Parameter specifications]

Power supply	12 VDC 1 A
Power consumption	Maximum 10.5W
Operating environment temperature and relative humidity	32 ° F~113 ° F (0 ° C~+45 ° C) 10%~90%, no condensation
Storage environment temperature and relative humidity	-4 ° F~140 ° F (-20 ° C~+70 ° C) 10%~90%, no condensation
Surge protection	Voltage: ± 1000 V
Electrostatic protection	Human discharge mode: ± 8kV (air gap discharge) ± 4kV (contact discharge)
Product dimensions (width x height x depth)	93.2 mm x 26 mm x 138.7 mm 3.67'' x 1.02'' x 5.46''
Packaging dimensions (width x height x depth)	170 mm x 80 mm x 250 mm 6.69'' x 3.15'' x 9.84''
Net weight (excluding accessories)	0.38 kg/0.84 lbs
