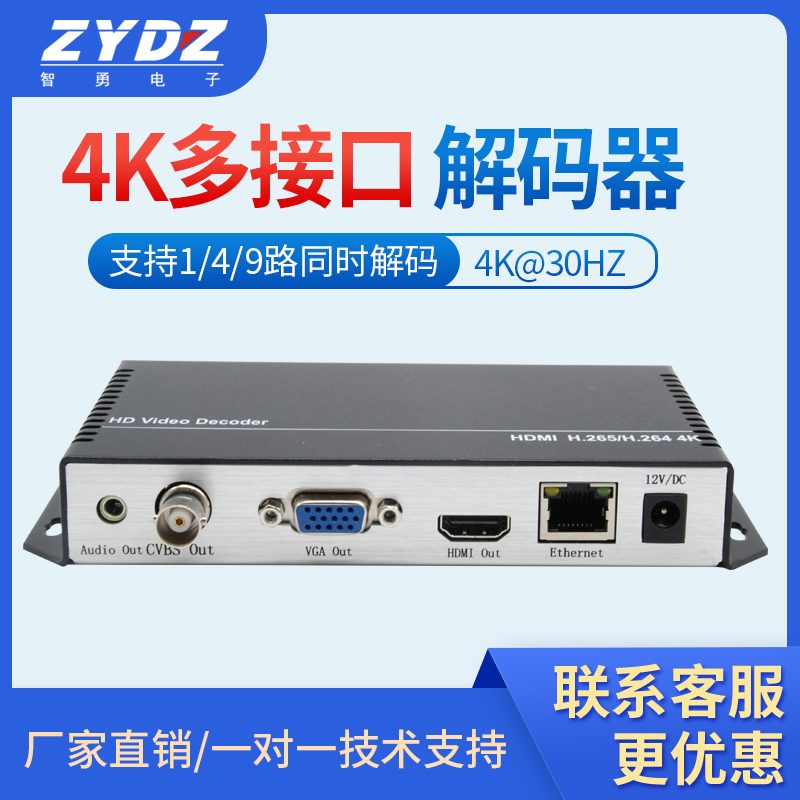

H.265 HDMI+CVBS+VGA Multi Interface HD Audio and Video Decoder

H.265 HDMI+CVBS+VGA Multi Interface HD Audio and Video Decoder

Name: H.265 HDMI+CVBS+VGA Multi Interface HD Audio and Video Decoder
Brand: ORIVISION
SKU: ZY-DH301
Availability: InStock

Model: ZY-DH301

HDMI HD decoder is a professional high-definition audio and video decoding product, which has 1 HDMI audio and video output interface, 1 VGA interface, 1 CVBS video output, 1 stereo audio output, and supports H.265/H.264 decoding formats. The device receives network streams from encoders and can set video resolution according to different needs. It has the advantages of high integration, low cost, and low transmission delay (less than 200ms when inputting 1080P resolution HTTP, RTSP, UDP streams), and can be widely used in various high-definition video systems such as multimedia publishing, digital signage, and signal publishing.

Model ZY-DH301

Decoding Format H.265/H.264

Decoding Capability 1 channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding

Input Interface RJ45*1

Output Interface HDMI*1, VGA*1, CVBS*1, Audio * 1

Resolution Up to 3840* 2160@30Hz

Streaming Protocols HTTP, RTSP, RTMP, RTMPS, SRT, UTP, UDP/RTP protocols

Dimensions 165*85*25mm

Request a Quote

Overview

Key advantage: Supports up to 3840 × 2160 output (HDMI interface)

Specifications Summary

Product Model	ZY-DH301
Decoding Format	H.265/H.264
Decoding capability	1 channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding
Input interface	RJ45*1
Output interface	HDMI1, VGA1, CVBS1, Audio 1
Resolution	Up to 3840* 2160@30Hz
Support streaming media protocols	HTTP, RTSP, RTMP, RTMPS, SRT, UTP, UDP/RTP protocols
Device dimensions	1658525mm

Key Features

Supports up to 3840 × 2160 output (HDMI interface)

HDMI/VGA/CVBS Select Output

Support adjustable cache size

Supports simultaneous decoding of 1/4/9 channels

Support customization of startup screen

Support scheduled restarts to ensure stability and reliability

H. Decoding of 265 Baseline Profile

H. Decoding of 264 Baseline Profile

H.264 Main Profile decoding

H.264 High Profile decoding

Applications

Decoding in the monitoring center and installing it on the wall

Receive network streams and restore them to HDMI and VGA signals for output to a spliced large screen, supporting multi screen split display.

Digital signage and information dissemination

1-channel decoding output, suitable for multi screen timed round robin playback in shopping malls and business halls.

Video conferencing and distance education

Restore the IP stream to HDMI and VGA for accessing conference terminals and teaching display devices, with clear and stable images.

Multi format compatible decoding

Compatible with H.265/H.264 and RTSP/RTMP/SRT multi protocol inputs, compatible with front-end devices from different brands.

FAQ

What is the highest supported resolution?

The specification parameter is up to 3840* 2160@30Hz Please select the matching resolution and frame rate based on the actual signal source capability.

What streaming media protocols are supported?

The supported protocols include HTTP, RTSP, RTMP, RTMPS, SRT, UTP, UDP/RTP protocols. Can interface with mainstream platforms, NVRs, and streaming media servers.

What is the size of the equipment and how to install it?

The appearance specification is 165 * 85 * 25mm, and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.

Technical Specifications

Full Parameter Table

Product Model	ZY-DH301
Video output	1-channel HDMI, VGA, CVBS select output
Output Resolution	3840× 2160@30hz 1080P@60 / 1080P@50 / 1080P@30 720P@60 720P@50 576P@50 480P@60 1280× 1024@60 1280× 800@60 1024× 768@60 800× 600@60 For downward compatibility with special resolutions, please contact sales for consultation
Decoding algorithm	H.265/H.264
Decoding capability	1 channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding
Audio output	1 audio output
Audio decoding format	AAC, MP3
Volume	The volume can be adjusted
Network input port	1000M RJ45 Ethernet port
Support streaming media protocols	HTTP, HTTPS, RTSP, RTMP, SRT, UTP, UDP/RTP, SRT protocols
Configuration Interface	WEB operation interface
Upgrade	Software upgrade can be done through the network
Power supply	Power supply 12V/DC 1A
Size	(Width x Length x Height) 165 * 85 * 25mm
Weight	Single unit 0.21KG
Operating Temperature	0~45°C
Operating Humidity	<90%, no condensation
