3G-SDI to HDMI VGA AV Converter

Name: 3G-SDI to HDMI VGA AV Converter
Brand: ORIVISION
SKU: SC04
Availability: InStock

Overview

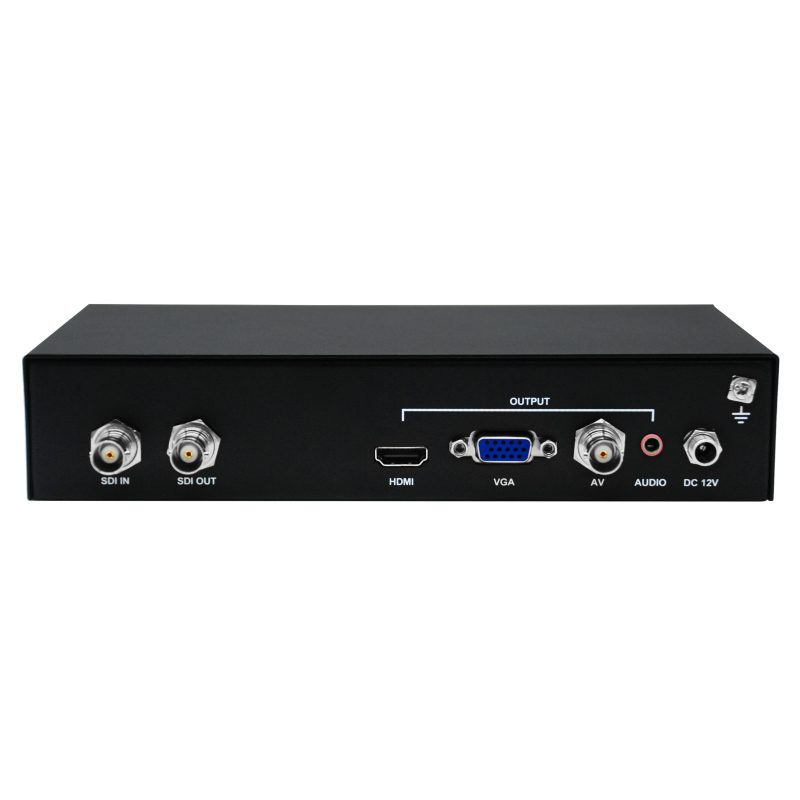

The SD/HD/3G-SDI to HDMI&VGA&AV multifunctional converter is a device that converts high-definition serial digital interface SDI signals into HDMI or VGA or analog AV (CVBS) signals. This device integrates SDI line driver, HDMI transmitter, VGA transmitter, and AV (CVBS) transmitter, which can easily convert SDI signals into HDMI/VGA/AV (CVCBS) signals, and also separate and output audio signals in the video. This device has complete conversion interfaces, low operating costs, easy installation, good compatibility, and is a stable and efficient conversion method. It is widely used in high-definition conference systems, high-definition film and television shooting, high-definition teaching systems, high-definition digital advertising, and other audio and video conversion applications.

Key advantage: Small size, lightweight design, strong anti-interference ability; Wall mounted design suitable for various scenarios

Specifications Summary

Product Model	SC04
Input interface	SDI
Output interface	HDMI&VGA&AV
Output Resolution	1920*1080@60Hz
Power consumption	MAX 8W
Power adapter	DC 12V
Maximum power consumption	MAX 8W
Operating temperature	-5℃ ~ +70℃
Operating humidity	5% ~ 90%
Host size	21211042mm
Warranty	1 year free warranty

Key Features

Small size, lightweight design, strong anti-interference ability; Wall mounted design suitable for various scenarios

Convert SD/HD/3G SDI video signals to HDMI/VGA/AV video signals through a converter

High definition uncompressed SD/HD/3G-SDI video signal resolution can reach up to 1920* 1080@60Hz

Support analog stereo audio separation

Built in automatic balancing system, smooth, clear, and stable screen

Built in ESD electrostatic protection circuit, providing comprehensive protection for system safety

Support signal i and p conversion, resolution scaling

Easy and convenient installation, plug and play, no need for settings

Applications

On site production for broadcasting and television

The camera SDI signal is converted to HDMI, SDI, VGA access switch and monitor, suitable for on-site production and broadcasting.

Upgrade and upgrade the monitoring system

The signal conversion between old analog equipment and digital equipment protects existing investments.

Medical image signal conversion

Signal format conversion and display extension for medical equipment such as endoscopes and ultrasound.

Simultaneous output of multiple formats

One input, multiple outputs, simultaneously driving display devices with different interfaces.

FAQ

What is the highest supported resolution?

The specification parameters are 1920* 1080@60Hz Please select the matching resolution and frame rate based on the actual signal source capability.

What are the power supply requirements?

The power supply specification is MAX 8W. Please ensure that the on-site power supply meets the requirements, and if necessary, configure a voltage regulator or UPS.

What is the size of the equipment and how to install it?

The appearance specification is 212 * 110 * 42mm, the specification name is detailed, the SDI video input parameters support protocol, SDI pixel bandwidth is 165MHz, and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.

What speed levels does the SDI interface support?

Equipped with SDI interface, it can interface with professional equipment such as broadcasting grade cameras, switching stations, and monitors.

Technical Specifications

Full Parameter Table

Specification Name		Specifications
SDI video input parameters	Supported Protocols	SDI
	Pixel bandwidth	165MHz, All-Digital
	Interface bandwidth	Total bandwidth 3Gbps
	Support resolution	19201080@60Hz 19201080@50Hz ; 19201080@30Hz 19201080@25Hz ; 19201080@24Hz 1080I@60Hz ; 1080I@50Hz 1280720@60Hz ; 1280*720@50Hz ;576i; 480i
	interface	BNC interface
	impedance	75Ω
	Suggested maximum input/output distance for SDI	Less than 70 meters, within 1920X1080@60Hz time
HDMI video parameters	Supported Protocols	HDMI 1.3; HDCP 1.2
	Pixel bandwidth	165MHz, All-Digital
	Interface bandwidth	Total bandwidth 6.75Gbps
	Support resolution	19201080@60Hz 19201080@50Hz ; 19201080@30Hz 19201080@25Hz ; 19201080@24Hz 1080I@60Hz ; 1080I@50Hz 1280720@60Hz ; 1280*720@50Hz
	interface	HDMI-A interface
	impedance	100Ω
	Suggested maximum input/output distance for HDMI	Less than 5 meters, in 1920X1080@60Hz time
VGA video parameters	Signal Type	VGA video signal
	data bandwidth	380MHz
	Maximum supported resolution	1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz 800x600@75Hz
	Video interface	DB15 VGA interface
	Interface impedance	75Ω
AV video parameters	AV video format	NTSC / PAL / SECAM
Audio	interface	3.5mm audio interface
	audio format	44.1K,48K,96K,176K,192K
	Signal Type	Stereo
Infrared	Infrared frequency	38KHz
	Signal Type	digital signal
Other	Power supply	Power adapter: DC 12V
	Maximum Power Consumption	MAX 8W
	Operating Temperature	-5°C to +70°C
	Operating Humidity	5% ~ 90%
	host size	21211042mm
	Warranty Period	1-year free warranty
